4. What METRON ENERGY MANAGEMENT (JOOL) looks like?

Interface presentation

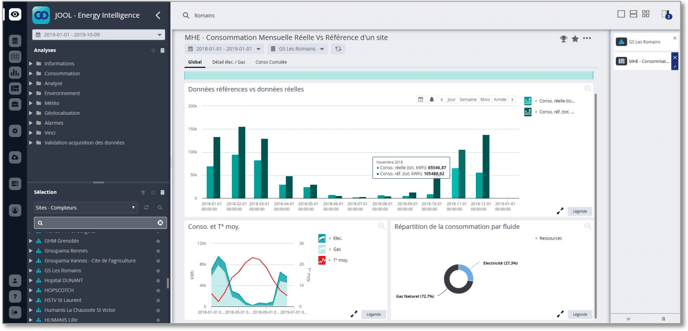

The METRON ENERGY MANAGEMENT (JOOL) platform is as follows:

Capture d’écran 2022-04-07 à 11.37.57

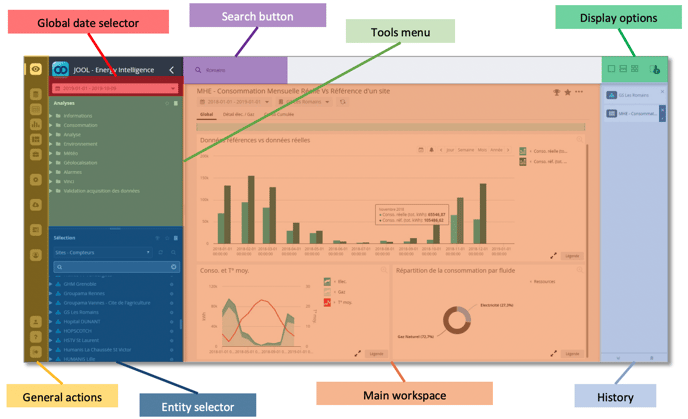

This interface can be broken down into several areas:

Capture d’écran 2022-04-07 à 11.38.59



  • General Actions: This bar contains several icons leading to the various levels of METRON ENERGY MANAGEMENT (JOOL) programming available to the user. This is where the user will access the various editors, the import interface, or their user profile.
  • Global date selector: allows you to select a time context which, unless otherwise specified, will be valid for all tools.
  • Tools menu: List of tools available to the user, sorted into directories for ease of use.
  • Entity selector: Allows you to choose the entity(ies) (and/or counter(s)) on which you want to use the tools. These entities/counters are organised in views.
  • Search button: Opens a field to find an entity or a counter.
  • Main workspace: The main work area will contain the results of each calculated tool. This area can be divided into 1, 2 or 4 to display one or more tools simultaneously.
  • Display options: This area contains several buttons that allow you to split the main workspace to display 1, 2 or 4 tools at the same time. A final button allows you to show or hide the "history"
    pane.
  • History pane: This area will contain a list of tools that have been opened since the beginning of
    the user's session.
