Widget description - Chronogram

Discover the different use of this widget and how to configure it.

Only Booleans variables, with two states, can be added to a chronogram. (usually true/false value) Each variable has a dedicated bar in the widget, including two different colours, depending on the state of the Boolean.

The main widget options

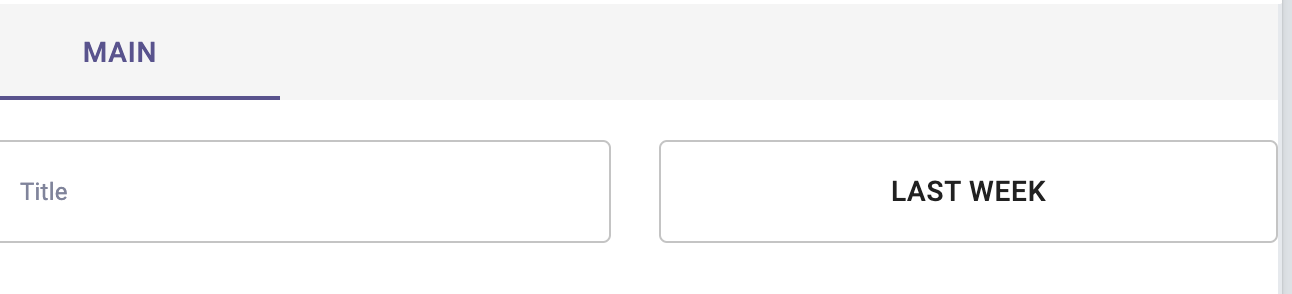

  • Main: In this option you can change the title of your widget and its timerange.

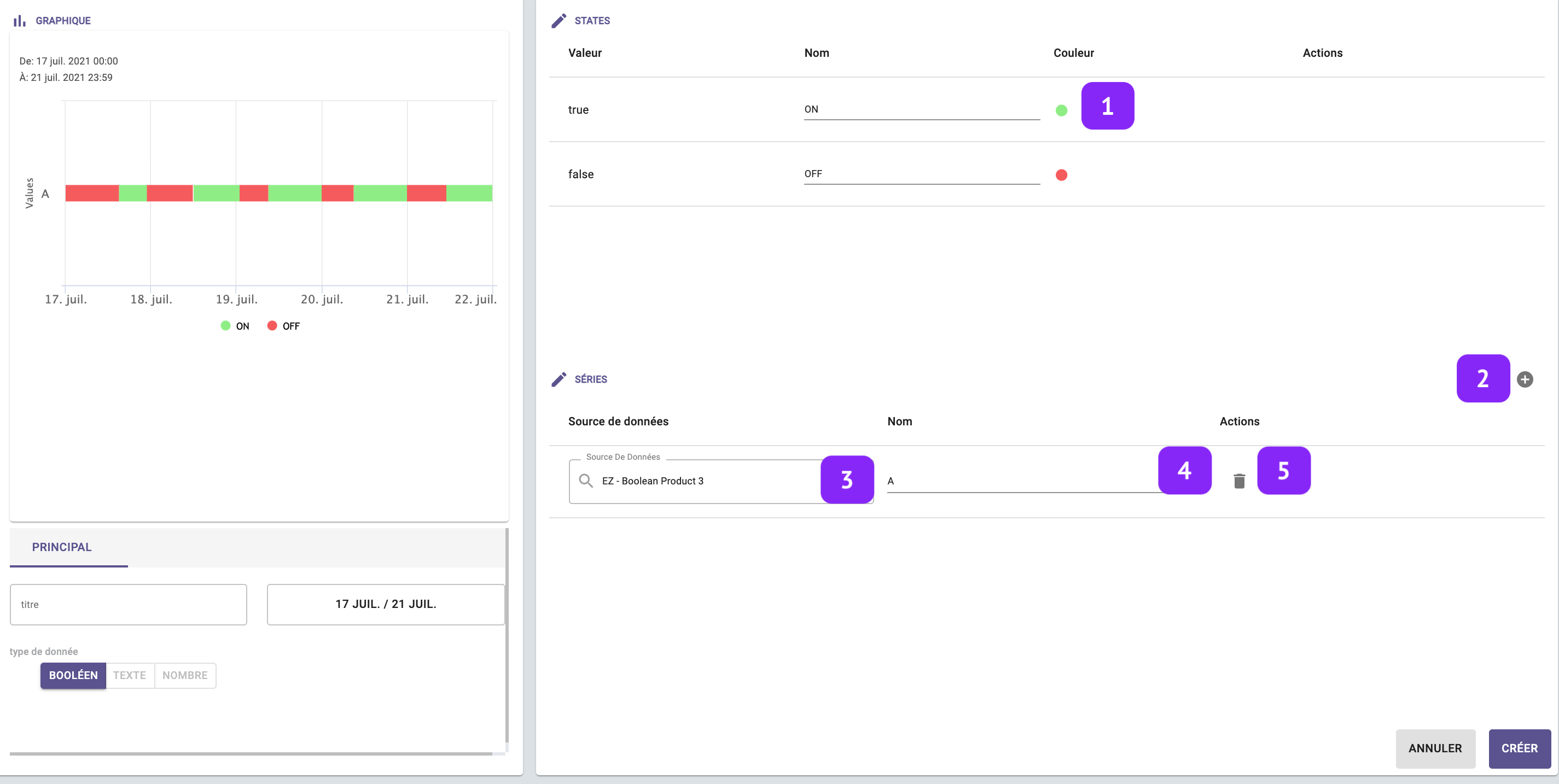

Widget configuration

  • Color/Name: You can define the color of each True or False logic as well as their label.
  • Add a series: Add a new Boolean variable to your widget. You can add multiple variables to a single widget.
  • Data source: Select the variable you want to display
  • Name: Assign a "label" to the series, which will be visible in the widget's legend and in the series tab.
  • Delete: Click to delete a variable from your widget

No aggregation is available in this chart (only raw data).
